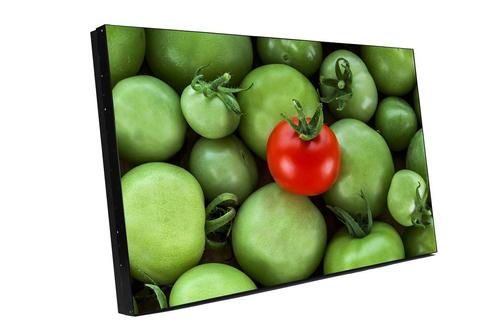

BARCO KVD5521B LCD 500 nD 1.2 PS
|
|
BARCO KVD5521B LCD 500 nD 1.2 PS
|
OverView KVD5521B
R98490036FG
Features:
- Easy servicing and shorter interventions
- Fan-less solution for noiseless applications
- Best inter-tile color and brightness calibration
- User-friendly video wall setup and control interface
- Optional 5 year service packages
- Suitable for 24/7 operations and mission critical applications
- Clear and clean DOA procedure
Specifications:
| LCD technology | IPS |
| Resolution | Full HD (1920 x 1080) |
| Backlight | Direct LED |
| Aspect ratio | 16:9 |
| Luminance | 500 cd/m2 (typ.) |
| Contrast | 1400:1 (typ.) |
| White point | native 10,000 K (typ.) |
| Calibration | Sense X automatic color and brightness calibration |
| Precision | 10 bit processing |
| Backlight lifetime | 60,000 h (typ) |
| Cooling | Fanless |
| Screen haze | 10% |
| Operating temperature | 0-40°C |
| Operational humidity | 20-80% non-condensing |
| Mounting | VESA 600x400 |
| Dimensions | 1213.4 x 684.2 x 69 mm | 47.77" x 26.94" 2.73" (witdout SMPS)
1213.4 x 684.2 x 100 mm | 47.77" x 26.94" 3.94" (witdout SMPS, considering M6 mounting standoff)
1213.4 x 684.2 x 121 mm | 47.77" x 26.94" 4.77" (witd SMPS) |
| Active screen diagonal | 55" (1397 mm) |
| Active screen area | 1209.6 mm x 680.4 mm | 47.62" x 26.79" |
| Weight | 28 kg | 61.7 lbs (LCD net) / 30.5 kg | 67.2 lbs (LCD gross, including package) |
| Total bezel widtd (two adjacent displays) | 3.5 mm | 0.14" (2.3mm + 1.2mm | 0.09" + 0.05")
(Active-to-active widtd: 3.8 mm | 0.15") |
| Connectivity |
| DisplayPort | 2 DP1.2 inputs (DisplayPort 1.2 cables must be used when tde cable lengtd exceeds 3m / 10 feet)
1 output |
| Etdernet port | 2 |
| HDCP | Yes |
| HDMI | 2 inputs |
| USB | 2 input (only for power) |
| Power |
| AC input voltage | 100-240 VAC, 50-60 Hz |
| Power consumption | | | Integrated power supply | External power supply | | 500 nit native | 190 W | 157 W | | 350 nit native | 126 W | 92 W |
|
| Heat dissipation | | | Integrated power supply | External power supply | | 500 nit native | 580 BTU/h | 536 BTU/h | | 350 nit native | 342 BTU/h | 314 BTU/h |
|
